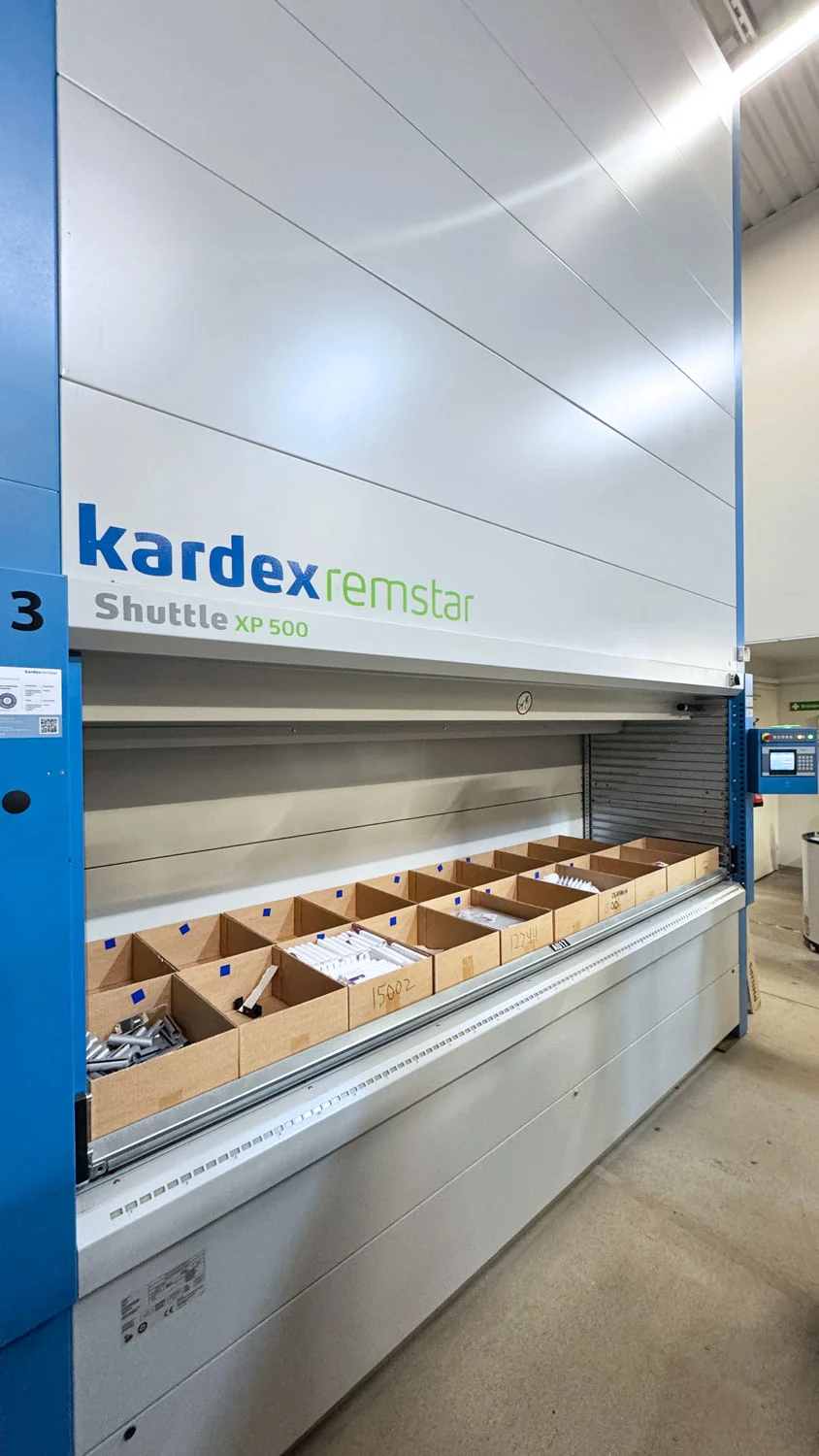

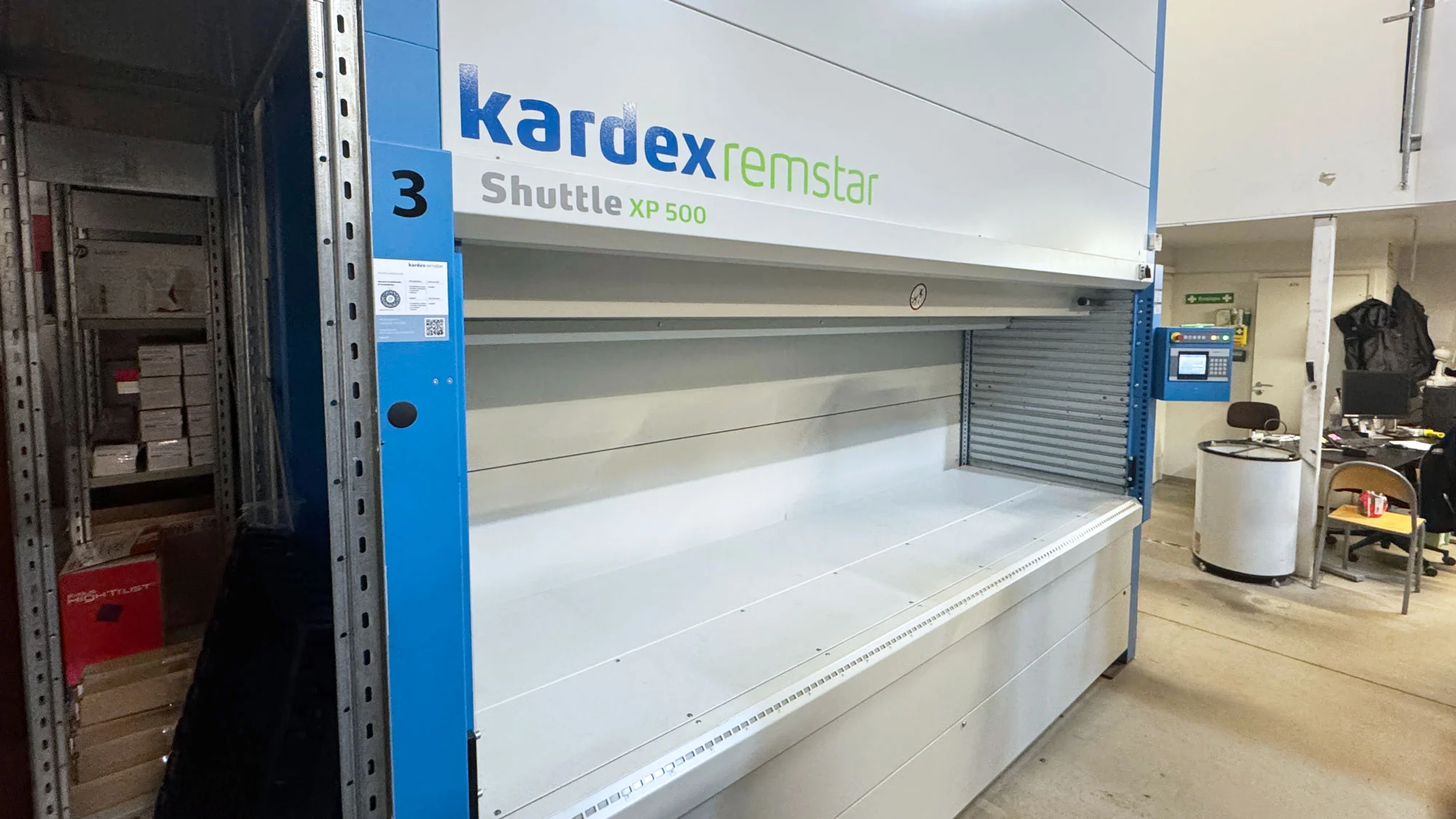

Kardex Shuttle XP 500 3050×813 Vertical Lift Module
A 2013 Kardex Shuttle XP 500 is now available for sale. This Vertical Lift Module is in excellent condition and has been continuously maintained by professional service from the manufacturer since installation, ensuring optimal function and operational reliability.
The trays of the vertical lift module have a width of 3,050 mm and a depth of 813 mm, providing a storage area of 2.5 m² per shelf. The Vertical Lift Module has a Height of 5,150 mm, making it suitable for many warehouses with lower ceilings, while the vertical design maximises space utilisation.

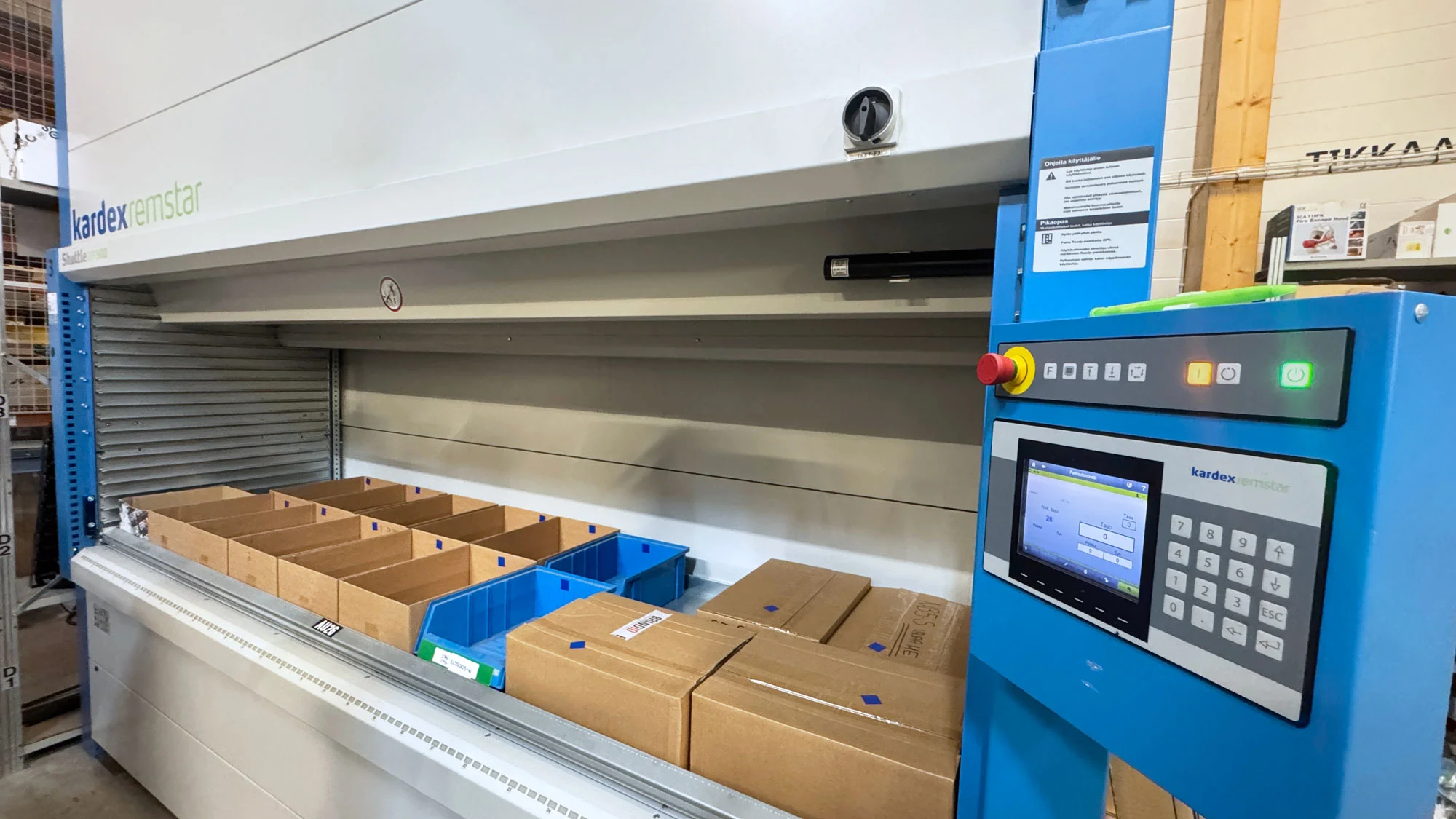

The Vertical Lift Module is equipped with an optional LED bar that makes picking faster and more accurate. Visual guidance that clearly marks where each item is located on the Tray eliminates the need for the operator to search manually. This saves time, reduces the risk of picking errors and creates a smoother and more reliable workflow. To use this feature, integration with a WMS/business system is required.
Available for delivery in January, 2026.
Shipping and installation are not included.
The trays of the vertical lift module have a width of 3,050 mm and a depth of 813 mm, providing a storage area of 2.5 m² per shelf. The Vertical Lift Module has a Height of 5,150 mm, making it suitable for many warehouses with lower ceilings, while the vertical design maximises space utilisation.
The Vertical Lift Module is equipped with an optional LED bar that makes picking faster and more accurate. Visual guidance that clearly marks where each item is located on the Tray eliminates the need for the operator to search manually. This saves time, reduces the risk of picking errors and creates a smoother and more reliable workflow. To use this feature, integration with a WMS/business system is required.
Available for delivery in January, 2026.
Shipping and installation are not included.
Overview
Year:
2013
Dimensions:
Height: 5.15 / Width: 3.38 m / Depth: 2.92 m
Technical information
Manufacturer:
Kardex Remstar
Manufacturing year:
2013
Modell:
SHUTTLE-XP-500 3050x813
Height:
5 150 mm
Width vertical lift module / tray:
3 380 mm / 3 050 mm
Depth vertical lift module / tray:
2 921 mm / 813 mm
Number of Trays:
Approx. 26 Trays
Maximum weight per Tray:
210 kg
Electronics:
3/N/PE 400V, 17A
Contact person
Tova Samuelsson
Export Sales
+46 760 26 66 02
tova.samuelsson@relevator.se
Request a quote
Questions? Contact us
Price:
28 200 EUR
Financing:
Leasing from 528 EUR / month
60-month lease period.
Standard credit check required
