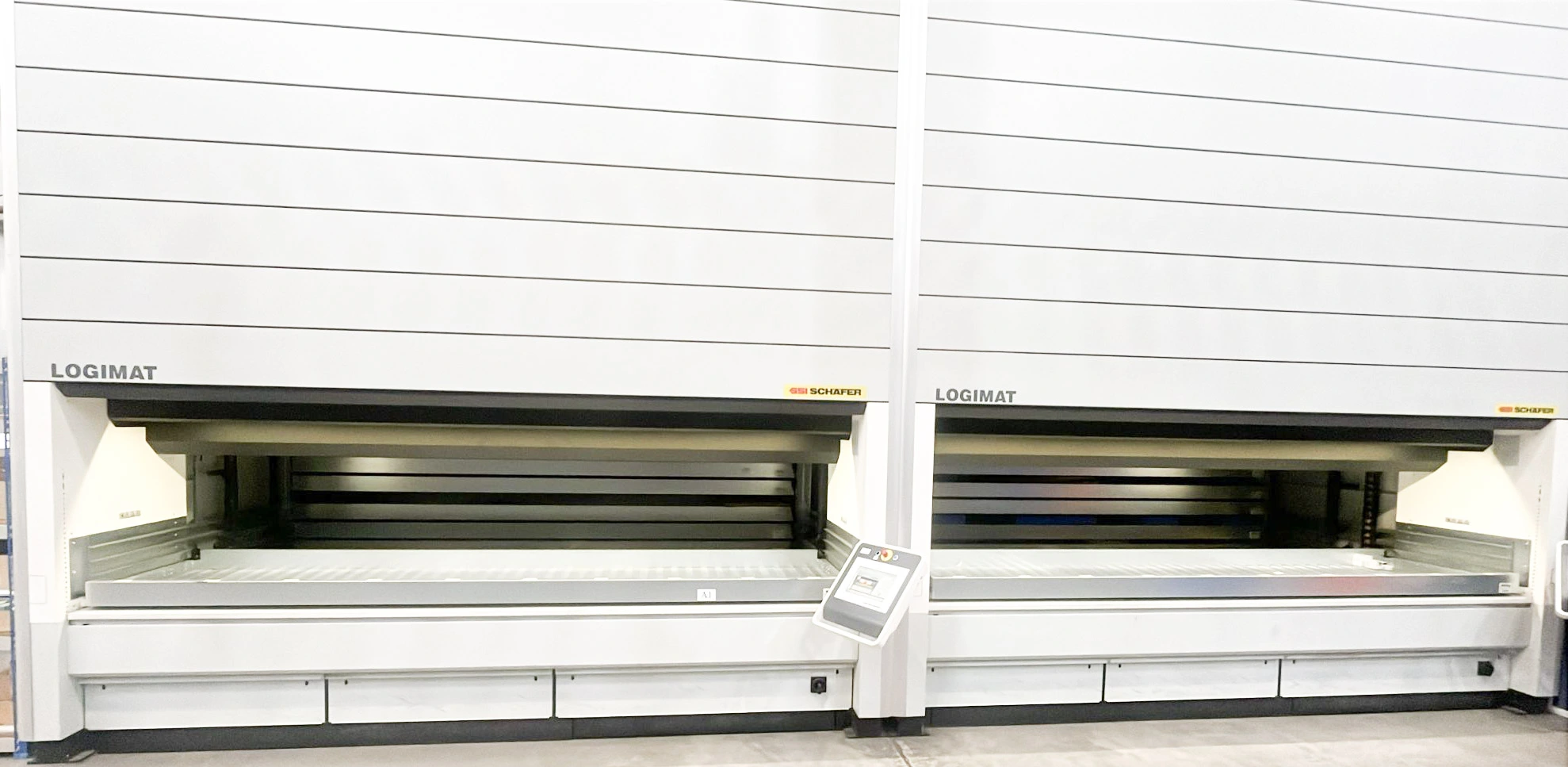

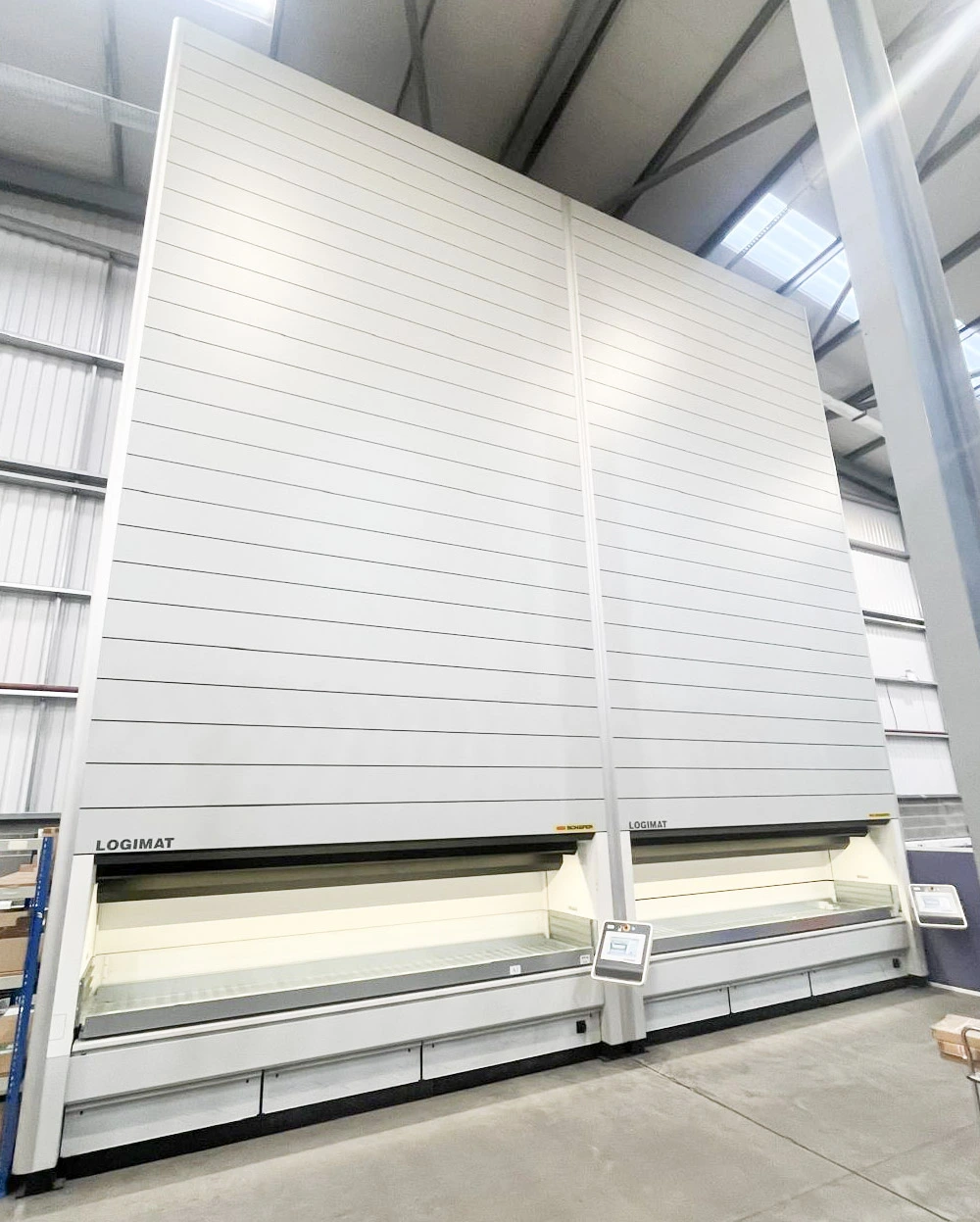

Vertical Lift Module SSI Schäfer LogiMat SLL – 2 units 4025×815
Two SSI Schäfer LogiMat SLL vertical lift modules from 2017 are now available for sale. The machines are in excellent condition and have been regularly maintained with annual service by the manufacturer since installation.
Each shelf in these vertical lift modules has a width of 4,025 mm and a depth of 815 mm, which corresponds to approximately 3.28 m² of storable space per tray. With 76 trays per machine, a total storage area of 249 m² per Vertical Lift Module is achieved. Together, the two machines provide almost 500 m² of storage space, while each machine occupies only 14 m² of floor space. This creates a very space-saving and efficient storage solution where every square metre counts.

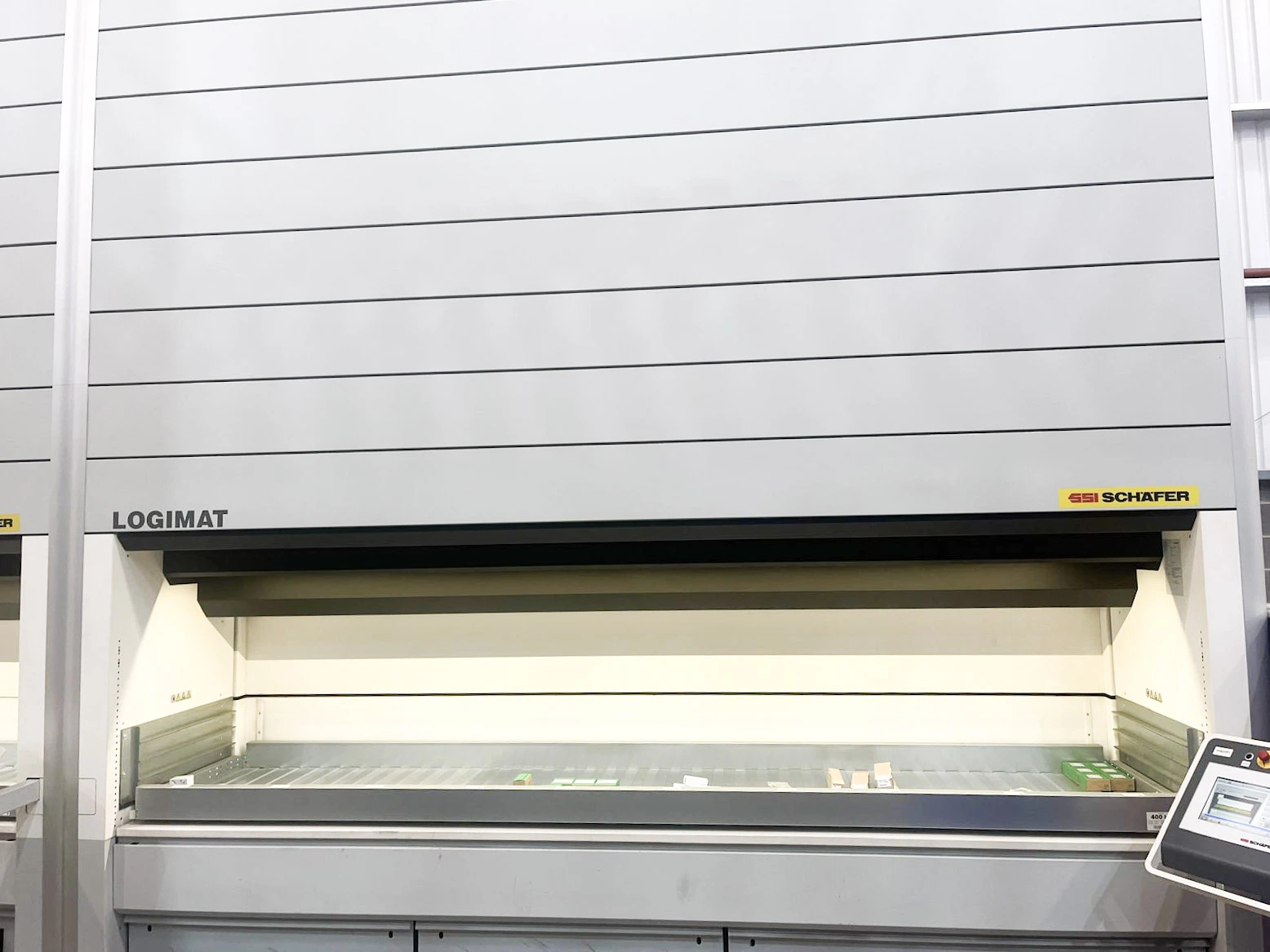

The machines are equipped with the optional LogiGate, a door solution in the picking opening that offers several advantages. LogiGate prevents dirt and dust from entering the Vertical Lift Module, protecting both the machine's mechanics and the stored goods. At the same time, the noise level is reduced when the machine is in operation, creating a quieter working environment.
Vertical Lift Modules can be purchased separately or together.
Available for delivery in January, 2026.
Shipping and installation are not included.
Each shelf in these vertical lift modules has a width of 4,025 mm and a depth of 815 mm, which corresponds to approximately 3.28 m² of storable space per tray. With 76 trays per machine, a total storage area of 249 m² per Vertical Lift Module is achieved. Together, the two machines provide almost 500 m² of storage space, while each machine occupies only 14 m² of floor space. This creates a very space-saving and efficient storage solution where every square metre counts.
The machines are equipped with the optional LogiGate, a door solution in the picking opening that offers several advantages. LogiGate prevents dirt and dust from entering the Vertical Lift Module, protecting both the machine's mechanics and the stored goods. At the same time, the noise level is reduced when the machine is in operation, creating a quieter working environment.
Vertical Lift Modules can be purchased separately or together.
Available for delivery in January, 2026.
Shipping and installation are not included.
Overview
Year:
2017
Dimensions:
Height: 9.65 / Width: 4.54 m / Depth: 3.1 m
Technical information
Manufacturer:
SSI Schäfer
Manufacturing year:
2017
Modell:
Logimat SLL 4025-815-9650/400
Height:
9 650 mm
Width vertical lift module / tray:
4 535 mm / 4 025 mm
Depth vertical lift module / tray:
3 092 mm / 815 mm
Number of Trays:
Approx. 76 Trays per Vertical Lift Module
Maximum weight per Tray:
400kg
Electronics:
3L/N/PE 400V, 24A, 50Hz
