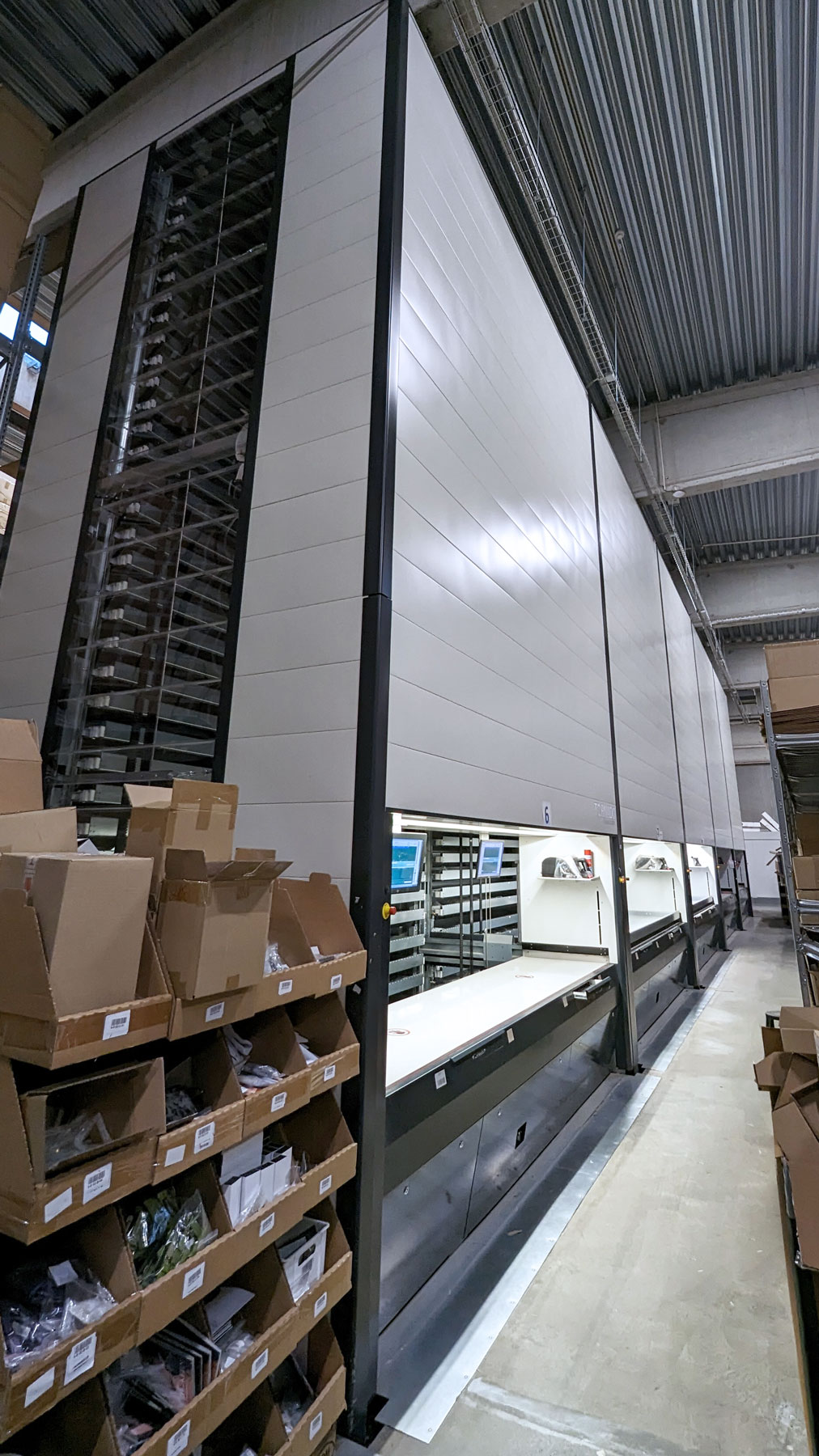

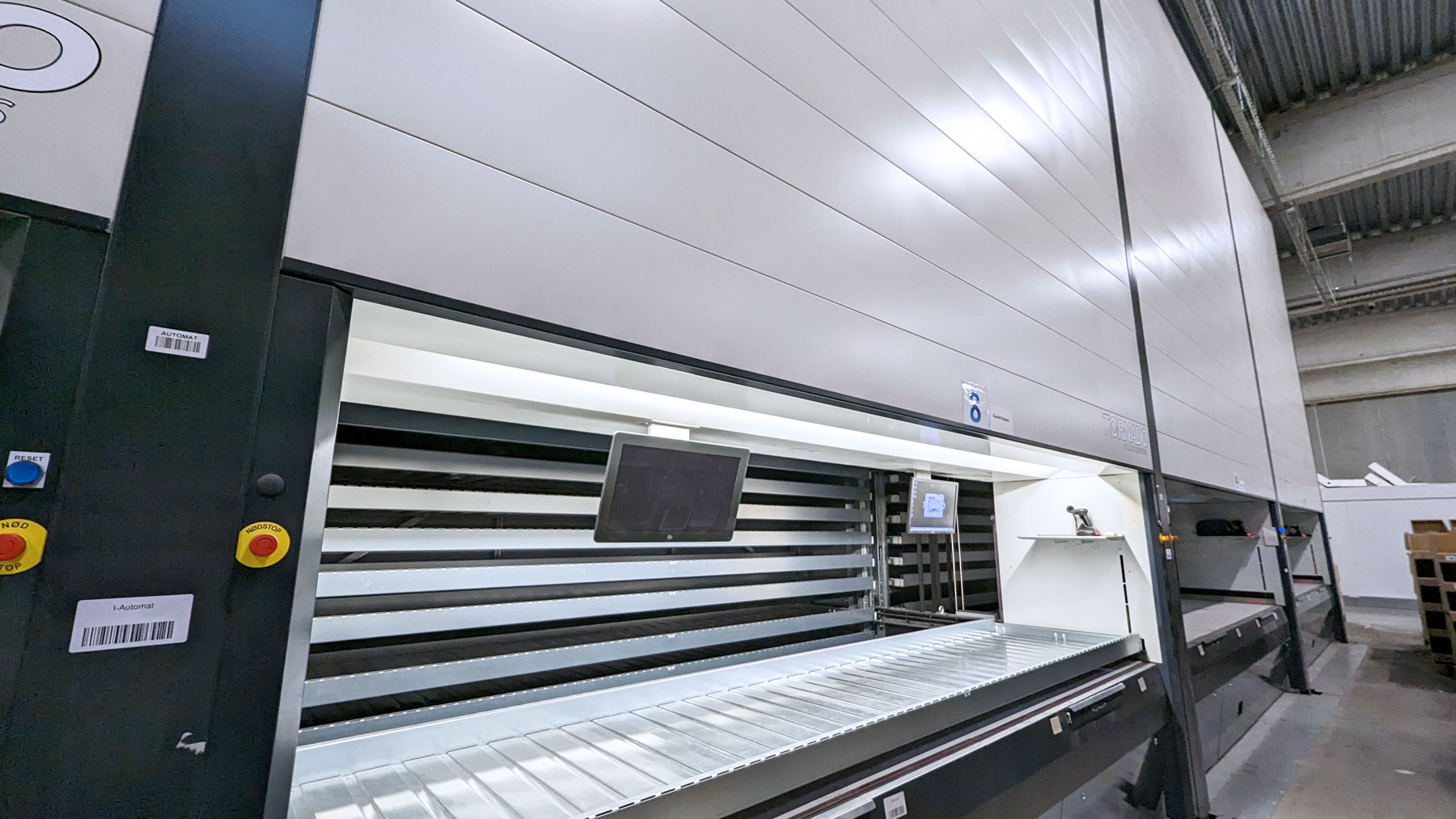

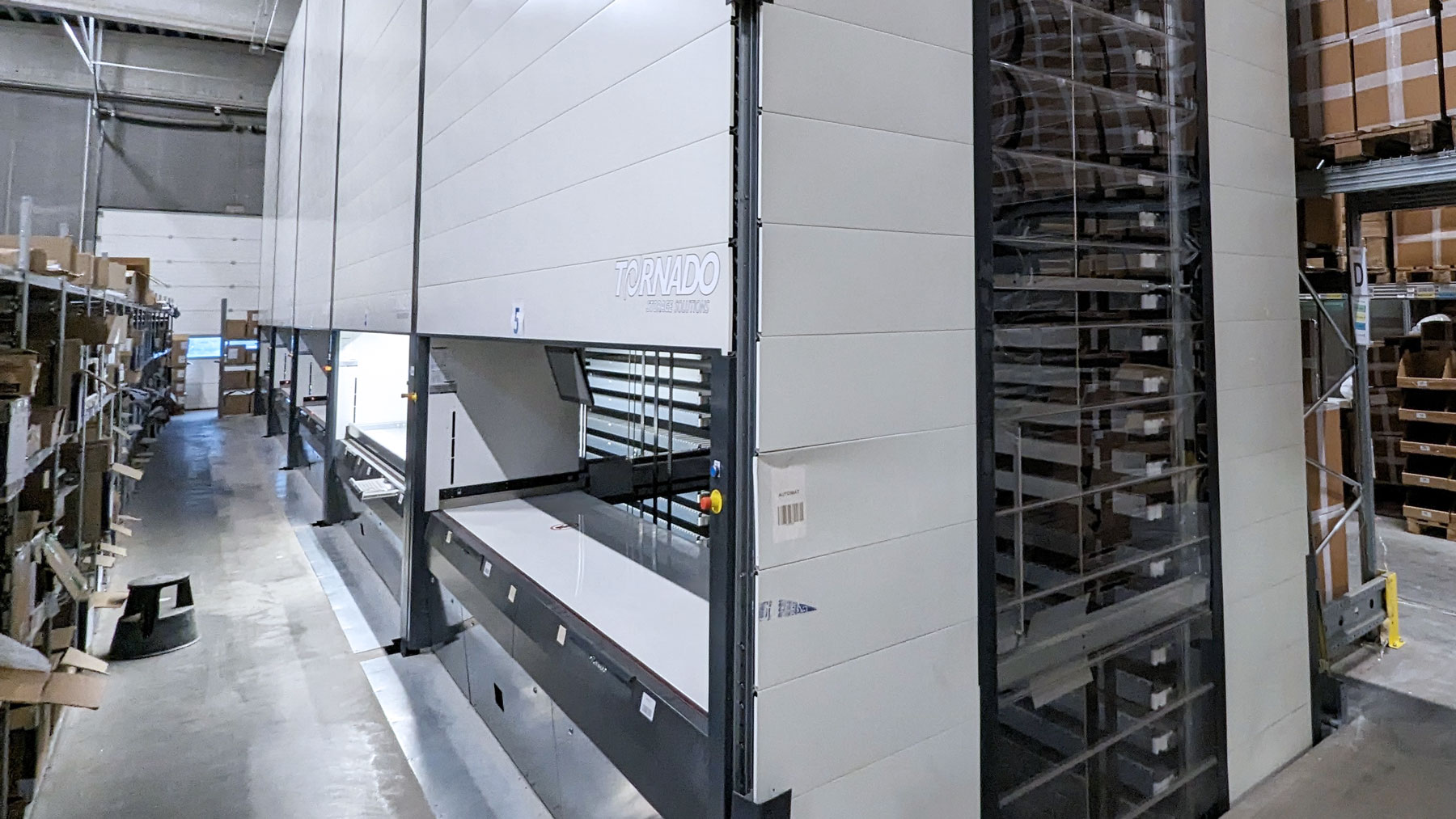

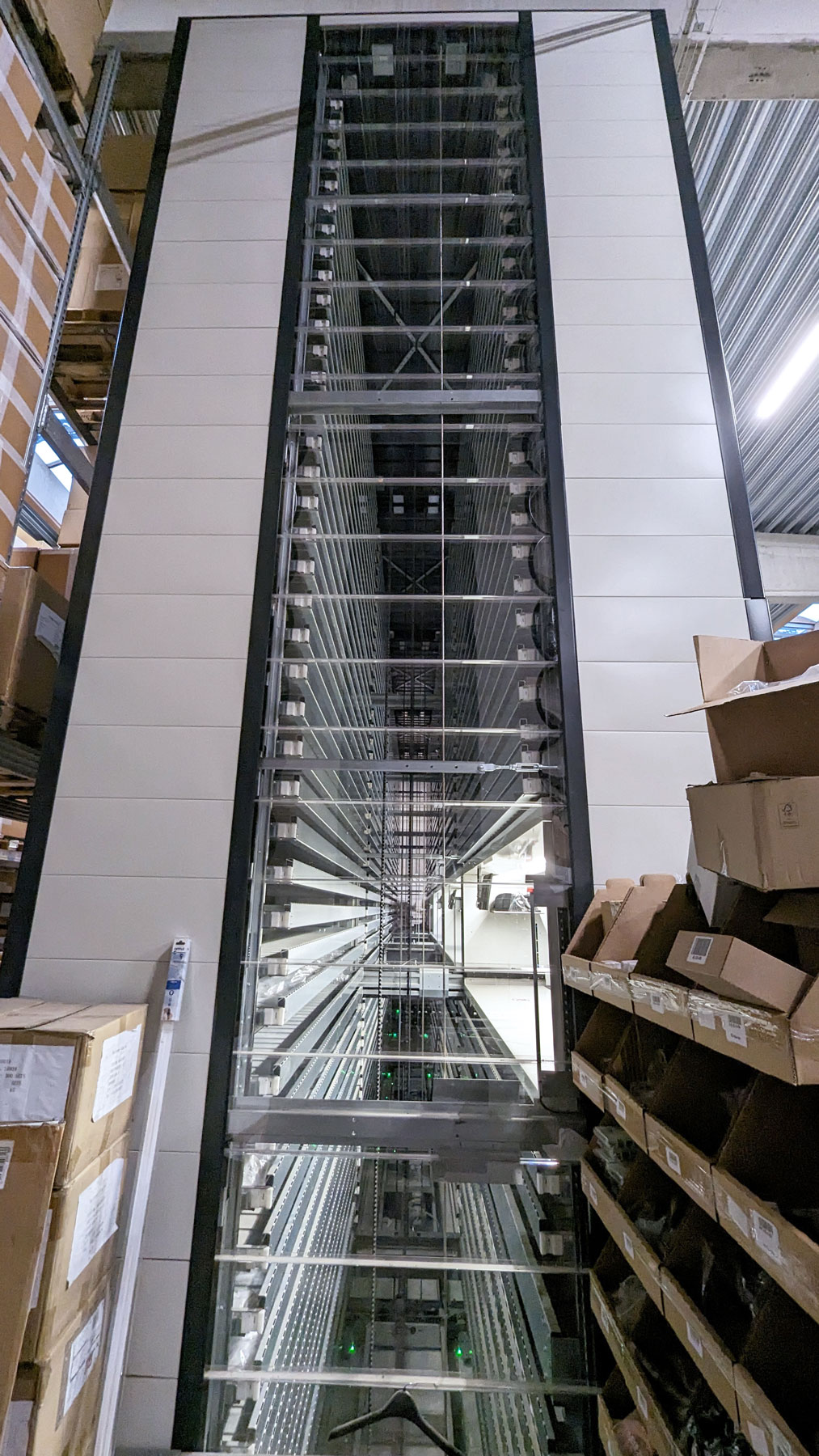

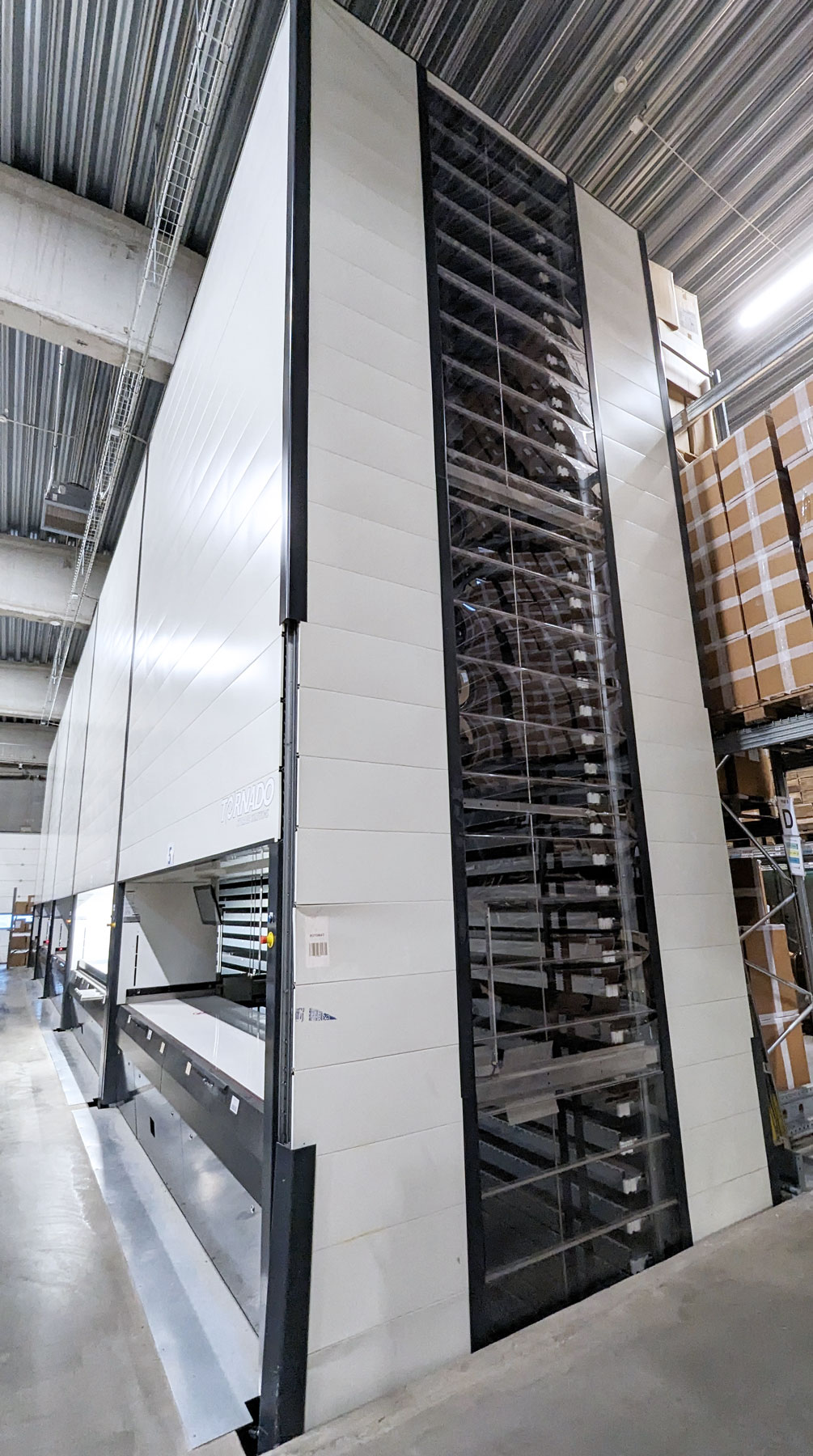

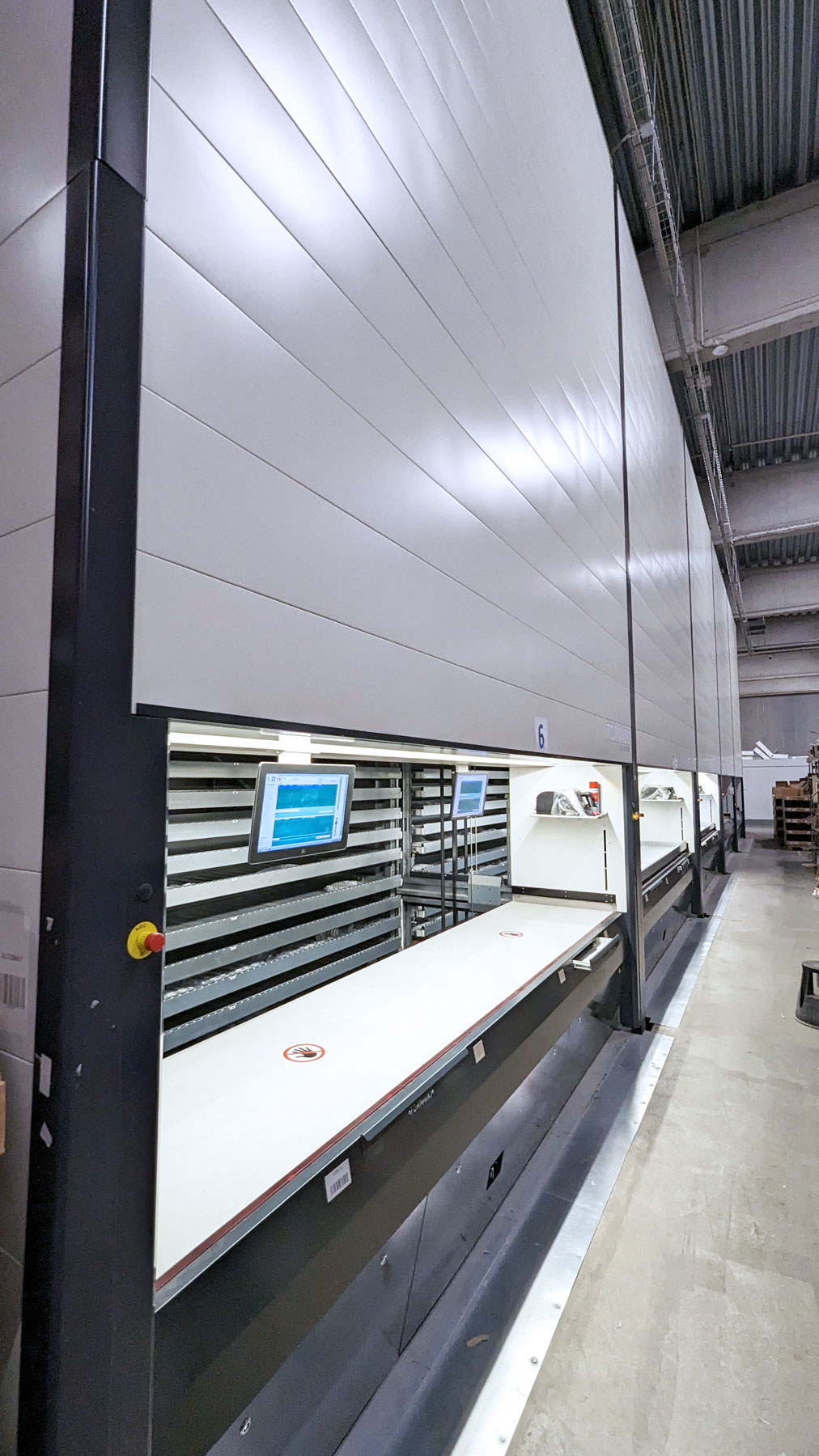

Constructor Tornado – 10 units 4000×820 Vertical Lift Modules
We now have 10 Constructor Tornado available for sale. The machines are in very good condition and have had annual service since installation by the Manufacturer.

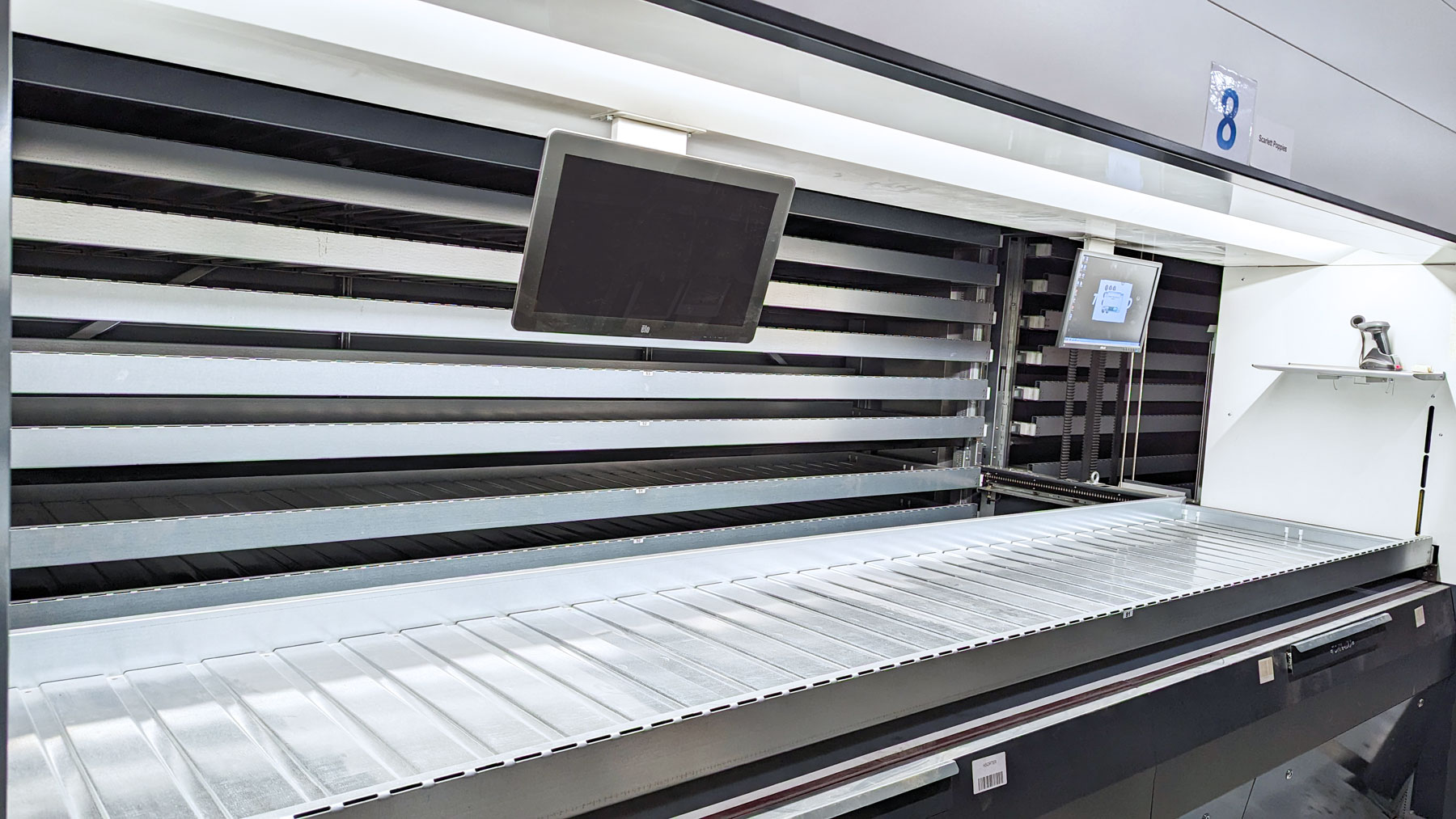

The machines have a Height of 9 000 mm and can very easily be lowered during installation. The Trays have a Width of 4,000 mm and a Depth of 820 mm which gives a storage area of 3.28 m2 per shelf. With 81 Trays per machine, this gives a total storage area of 266 m2. At the same time, the machines only take up 13.5 m2 of floor space.
All Trays have a load capacity of 300kg per machine, giving a total storage area of 24,300kg.
This provides a highly space-efficient solution where storage capacity is maximised on minimal floor space. By utilising the Height, a compact and structured warehouse is created, freeing up valuable floor space for other functions. The high load capacity makes the system robust and flexible for different types of goods.
Available in August, 2026.
Shipping and installation are not included.
The machines have a Height of 9 000 mm and can very easily be lowered during installation. The Trays have a Width of 4,000 mm and a Depth of 820 mm which gives a storage area of 3.28 m2 per shelf. With 81 Trays per machine, this gives a total storage area of 266 m2. At the same time, the machines only take up 13.5 m2 of floor space.
All Trays have a load capacity of 300kg per machine, giving a total storage area of 24,300kg.
This provides a highly space-efficient solution where storage capacity is maximised on minimal floor space. By utilising the Height, a compact and structured warehouse is created, freeing up valuable floor space for other functions. The high load capacity makes the system robust and flexible for different types of goods.
Available in August, 2026.
Shipping and installation are not included.
Overview
Year:
2017
Dimensions:
Height: 9 m / Width: 4.5 m / Depth: 3 m
Technical information
Manufacturer:
Constructor
Manufacturing year:
2017
Modell:
TORNADO 400/8-300-9000-81-81
Height:
9 000 mm
Width vertical lift module / tray:
4 500 mm / 4 000 mm
Depth vertical lift module / tray:
3 000 mm / 820 mm
Number of Trays:
Approx. 81 units
Maximum weight per Tray:
300 kg
Electronics:
400V, 16A
Price:
29 800 EUR / unit
Financing:
Leasing from 560 EUR / month
60-month lease period.
Standard credit check required.
