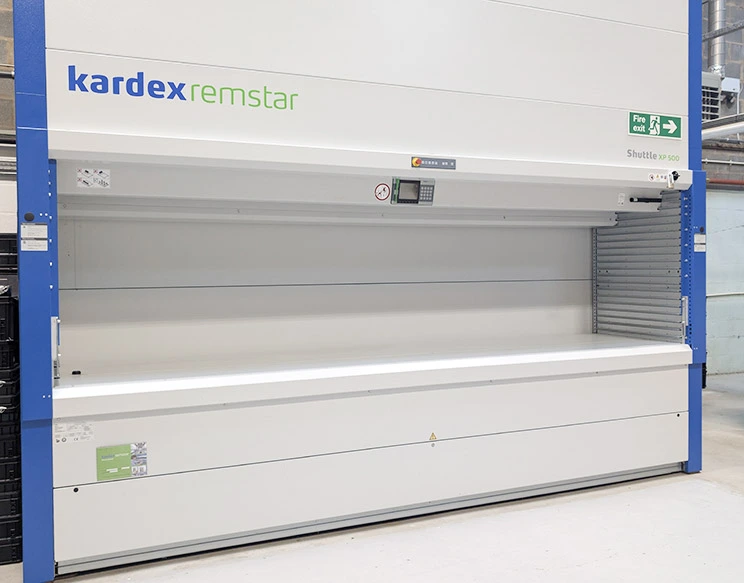

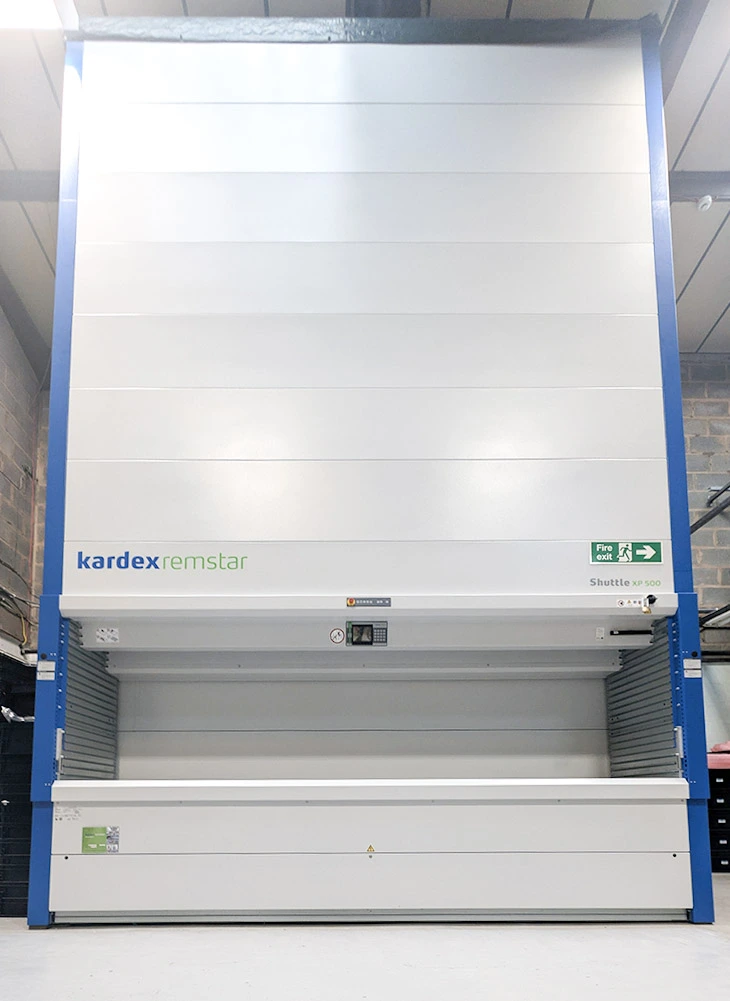

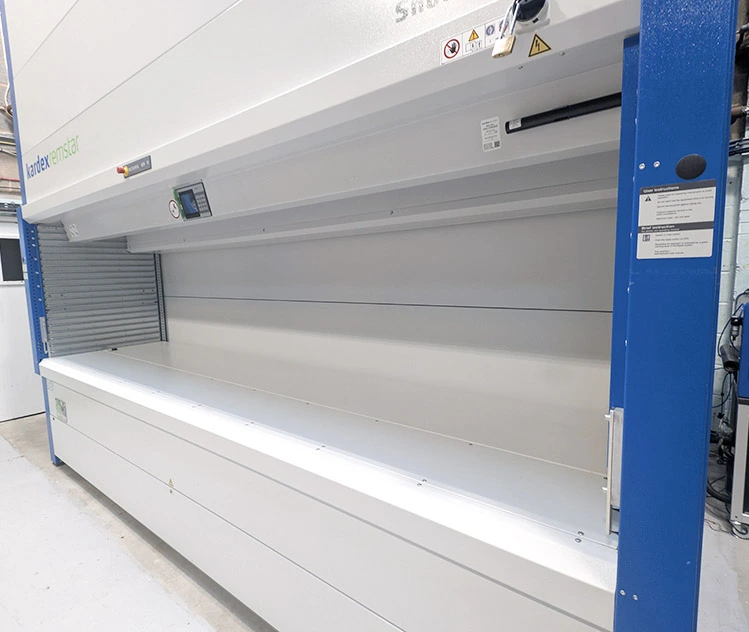

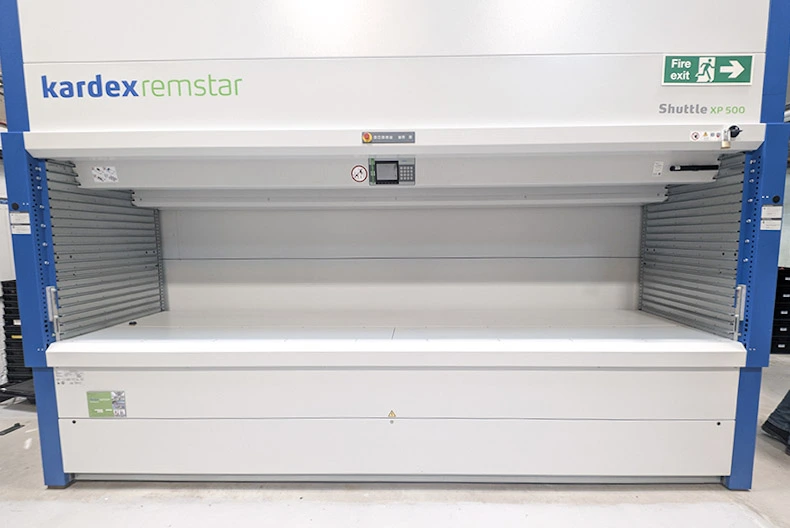

Kardex Shuttle XP 500 3650×813 Vertical Lift Module

A wide Kardex Shuttle XP 500 3650x813 from 2019 is now available for sale. The Vertical Lift Module has been well-maintained by the manufacturer and is in excellent condition.

The Vertical Lift Module occupies only 11.63 m² of floor space, but thanks to its 38 shelves with a width of 3,650 mm and a depth of 813 mm, it offers a total storage area of 112.5 m².

The Kardex Shuttle XP 500 is a reliable and efficient Vertical Lift Module that provides high storage capacity while using minimal floor space. The model with a shelf width of 3,650 mm is particularly suitable for businesses handling large volumes. With a height of 5,950 mm, it fits most operations.

Available in March 2025.
Shipping and installation are not included.

Overview

Year:
2019
Dimensions:
Height: 5.95 m / Width: 3.98 m / Depth: 2.92 m

Technical information

Manufacturer:
Kardex Remstar
Manufacturing year:
2019
Model:
SHUTTLE-XP-500-3650x813
Height:
5 950 mm
Width vertical lift module / tray:
3 980 mm / 3 650 mm
Depth vertical lift module / tray:
2 921 mm / 813 mm
Number of trays:
Approx. 38
Maximum weight per tray:
450 kg
Electronics:
3/N/PE 400V, 17A
