2 units Kardex Shuttle XP 1000 1850×864 Vertical Lift Module

We are now offering 2 well-maintained Kardex Shuttle XP 1000 vertical lift modules. These units are in excellent condition and have undergone regular maintenance to ensure optimal performance.

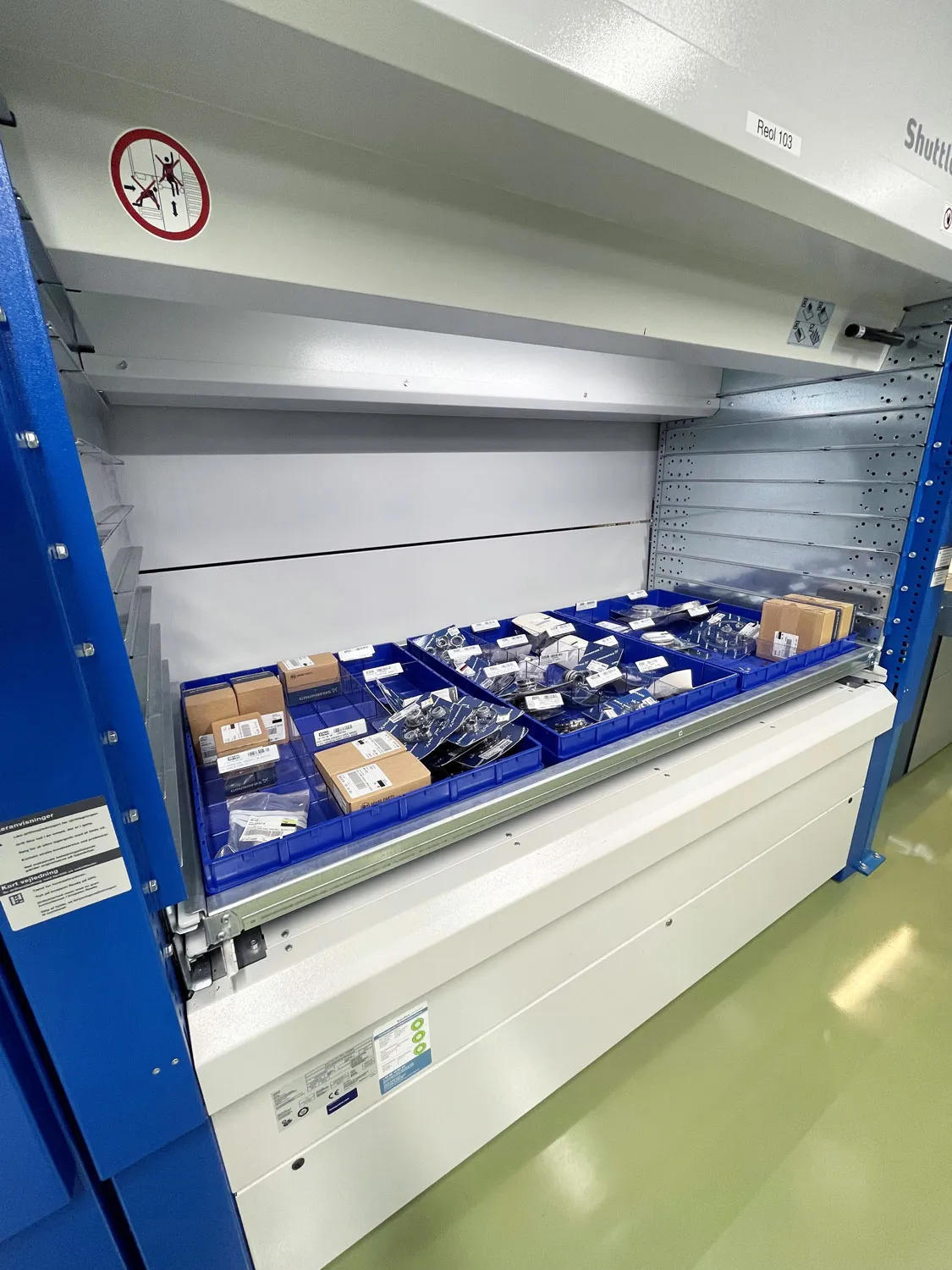

The machine is equipped with approximately 40 trays with varying load capacities. Of these, 20 trays have a capacity of 535 kg, while the other 20 trays can handle loads up to 950 kg. This allows for flexible storage and ensures that materials of different weights and volumes can be efficiently managed.

What makes these vertical lift modules unique is the slightly narrower outer width of 2,180 mm and tray width of 1,850 mm. The availability of machines with this width is limited on the second-hand market, but their usability is excellent and in demand, as they can fit into tighter/narrower spaces.

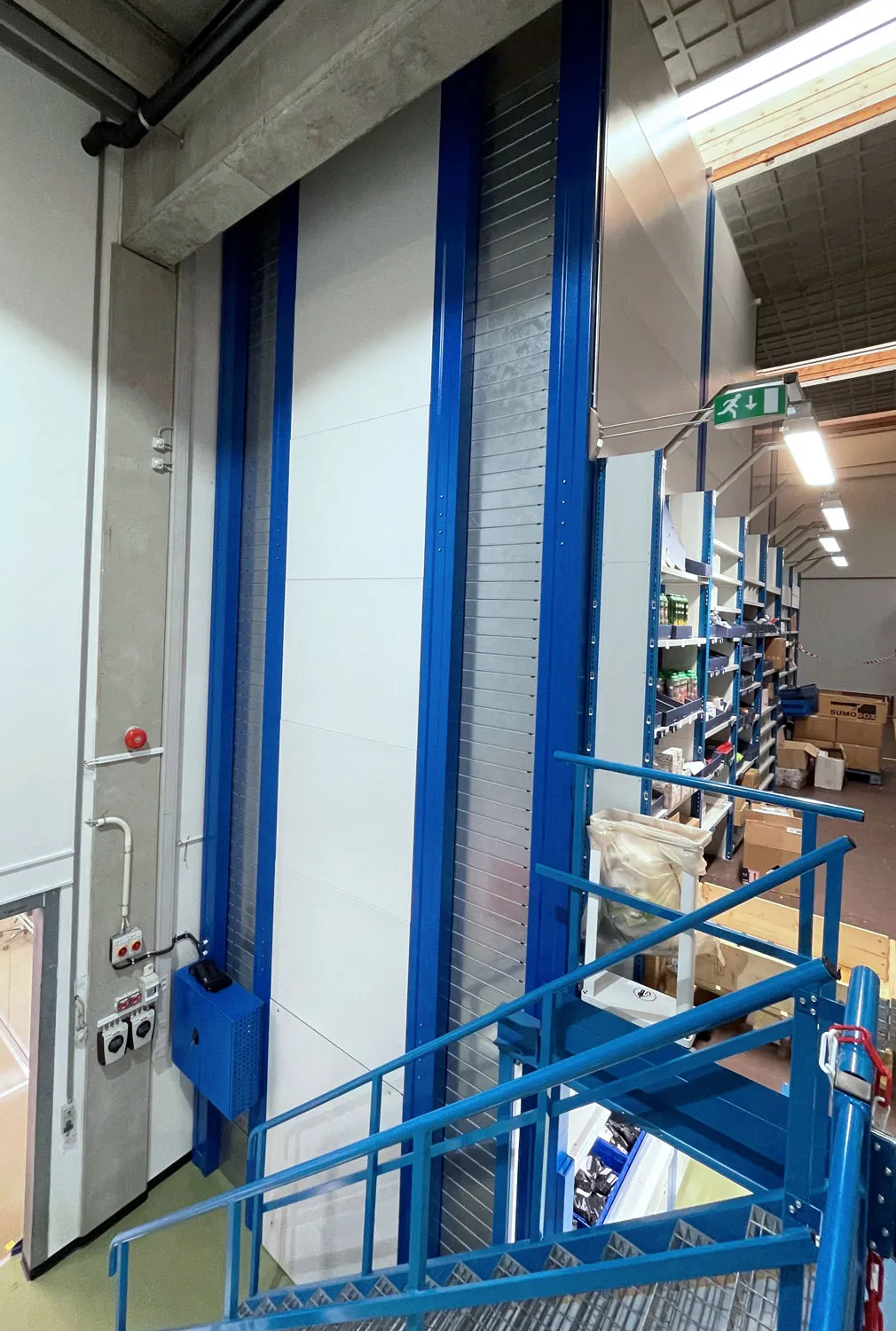

The Vertical Lift Modules has been in a sheltered place due to a mezzanine, which means that the cladding and the external condition are very good.

Available from week 50.
Shipping and installation is not included.

Overview

Year:
2015
Dimensions:
Height: 7.95 m / Width: 2.18 m / Depth: 3.1 m

Technical information

Manufacturer:
Kardex Remstar
Manufacturing year:
2015
Model:
SHUTTLE-XP-1000-1850X864
Height:
7 950 mm
Width vertical lift module / tray:
2 180 mm / 1 850 mm
Depth vertical lift module / tray:
3 100 mm / 864 mm
Number of trays:
Approx. 40 per lift
Maximum weight per tray:
535 kg - 950 kg
Electronics:
3/N/PE 400V, 23A
