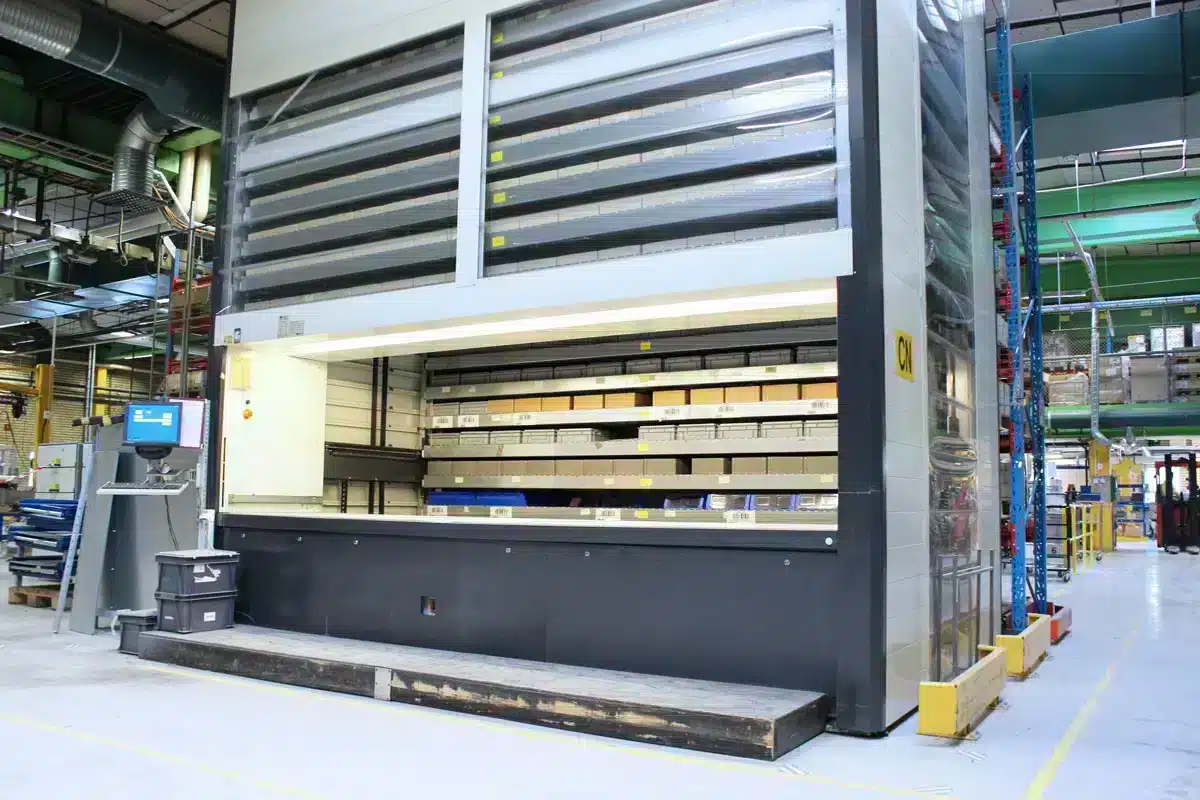

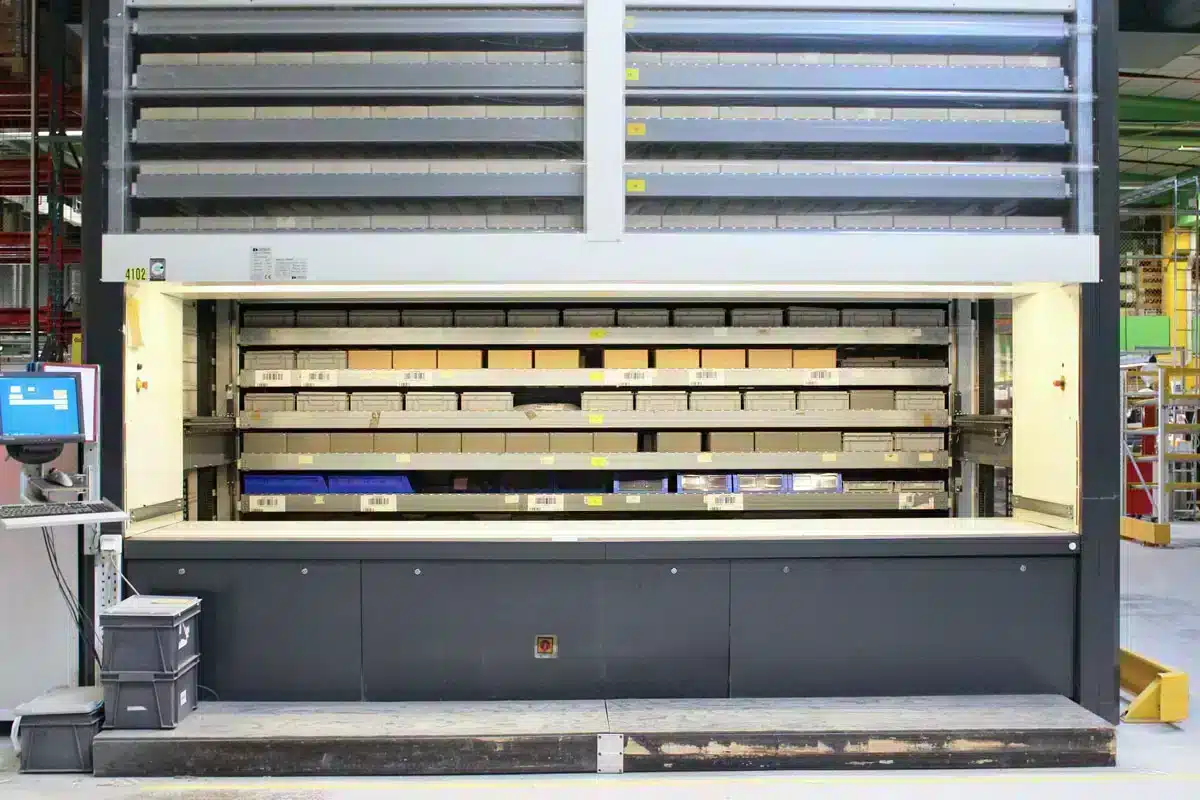

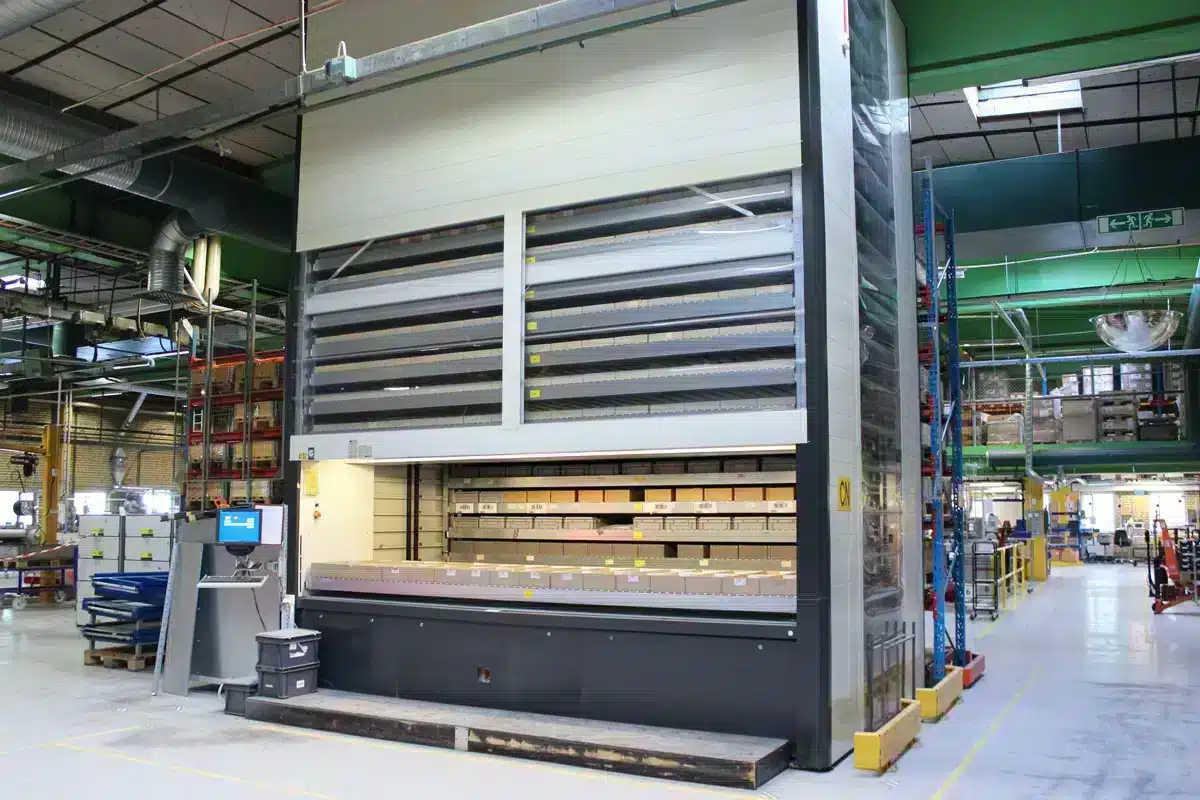

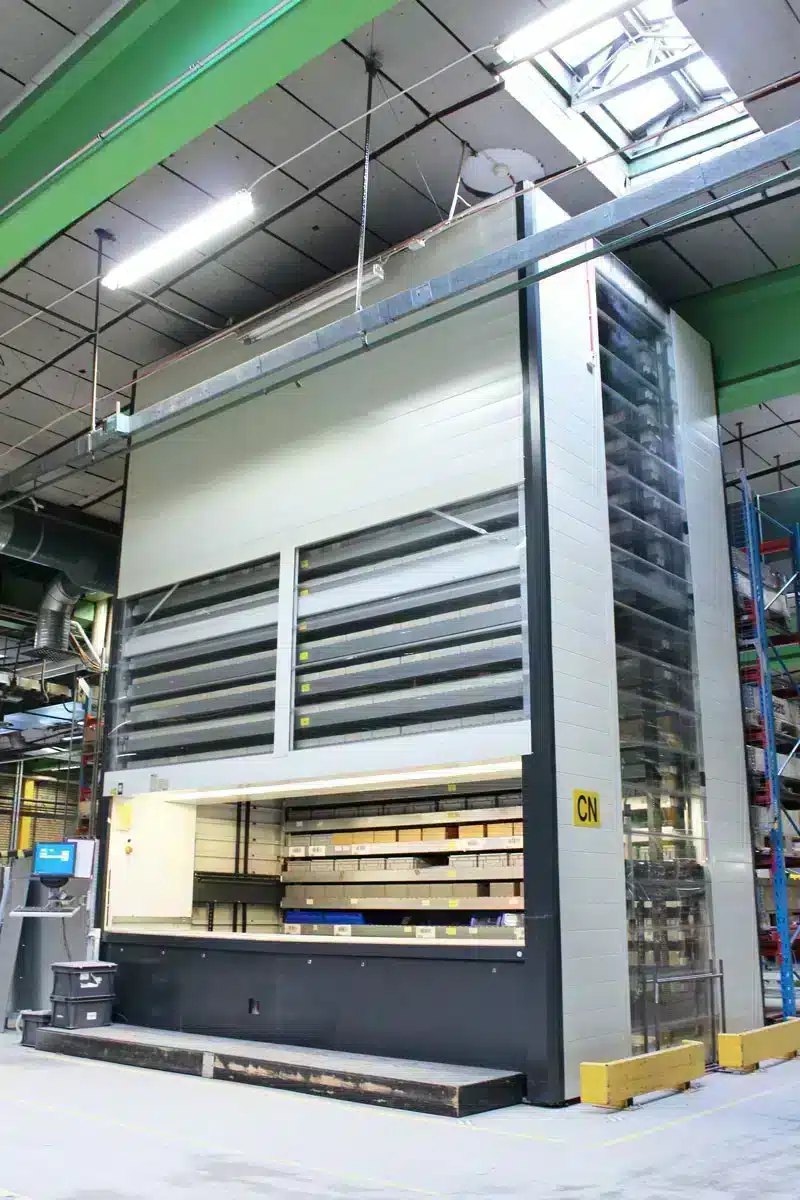

Constructor Tornado 400/8-300
Constructor Tornado is a reliable vertical lift module, known for its speed.
This object is equipped with 4 000 mm trays which offers extremely compact storage on a small surface.

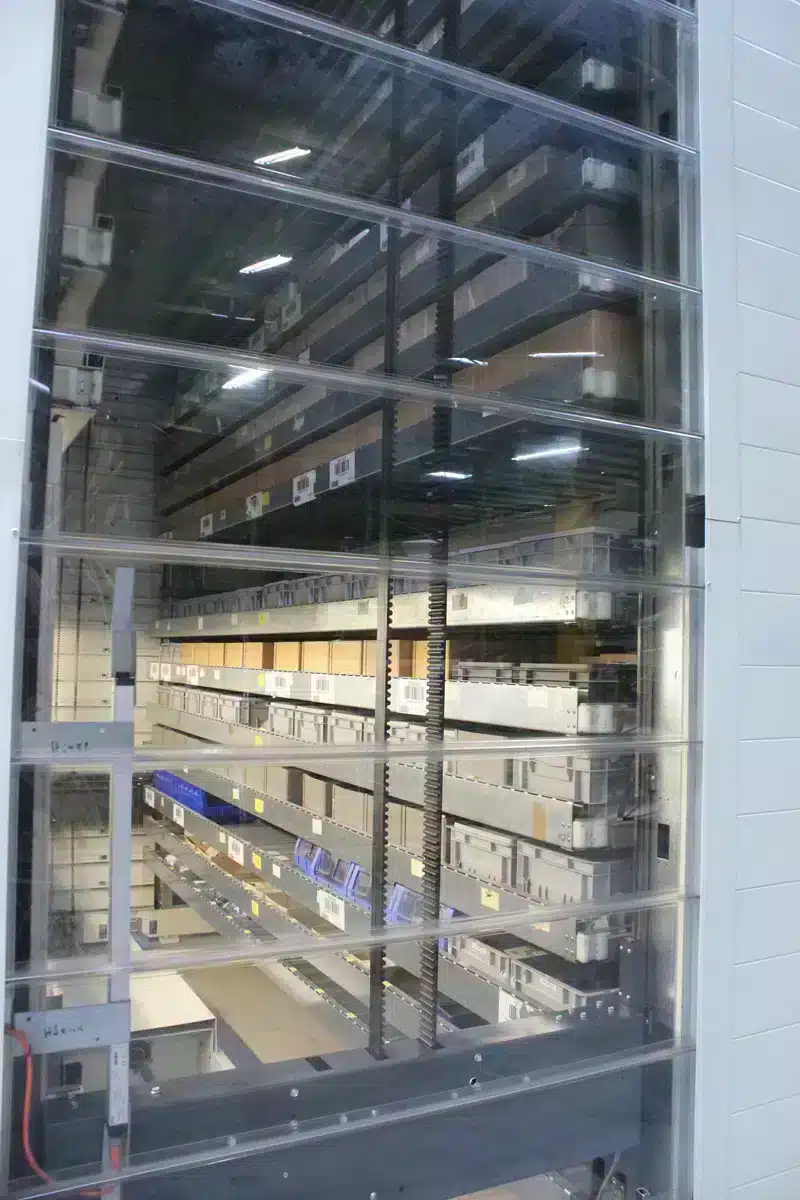

The vertical lift module is equipped with plexi panels both in the front and on one side.
This vertical lift module has 3.28 m² storage surface per tray, with a total of 38 trays, the machine has an impressive 124 m² of total storage surface - all on a floor surface of just 13.5 m². This is the perfect machine for a warehouse with low to medium frequent goods where you need compact and cost efficient storage.

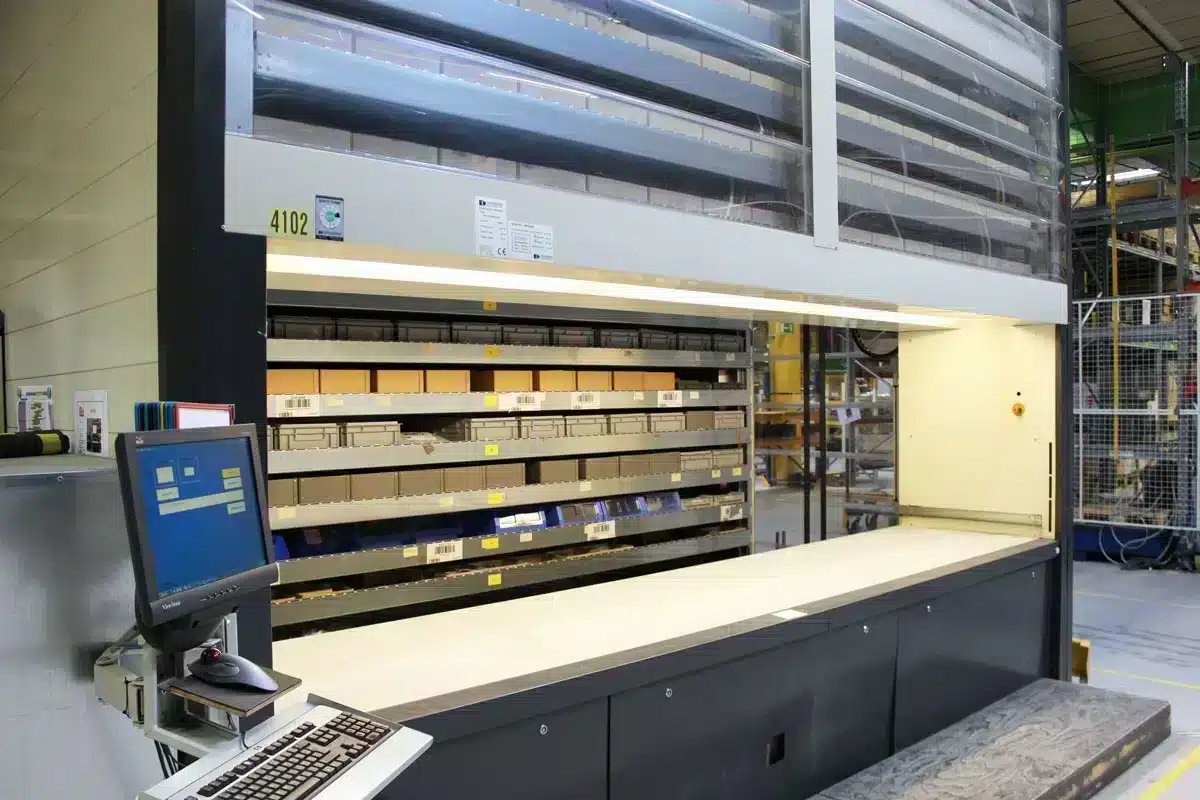

The machine is equipped with Constructor's software TC1000, a simple PC installed control panel where you can control the trays.
The vertical lift module was serviced in March 2023 and has been serviced annually since installation.
Avaialble for delivery in early September - shipping and installation not included.
This vertical lift module has 3.28 m² storage surface per tray, with a total of 38 trays, the machine has an impressive 124 m² of total storage surface - all on a floor surface of just 13.5 m². This is the perfect machine for a warehouse with low to medium frequent goods where you need compact and cost efficient storage.
The machine is equipped with Constructor's software TC1000, a simple PC installed control panel where you can control the trays.
The vertical lift module was serviced in March 2023 and has been serviced annually since installation.
Avaialble for delivery in early September - shipping and installation not included.
Overview
Year:
2004
Dimensions:
Height: 5.8 m / Width: 4.45 / Depth: 2.95 m
Technical information
Manufacturer:
Constructor
Production year:
2004
Model:
Tornado 400/8-300-5800-38-38
Height:
5 800 mm
Width vertical lift module / tray:
4 450 mm / 4 000 mm
Depth vertical lift module / tray:
2 950 mm / 820 mm
Number of trays:
38 trays
Maximum weight per tray:
300 kg
Electronics:
400 v
Price:
20 390 EUR
Financing:
Environment
Second hand warehouse automation - for a better environment
A serviced and well kept vertical carousel or vertical storage lift can easily function for 20, 30 or 40 years. Many companies are unaware of the possibility of selling their used warehouse automation and will often send well functioning machines for scrapping. To create 1 tonne of metal sheets around 2 tonnes of carbon oxide is emitted; by buying second hand warehouse automation you save money – and our environment!
We are happy to help you sell your used vertical carousels and vertical storage lifts, additionally, offer you second hand units in good condition and at a fair price. Contact us using the form below, or just give us a call!
